Replacing a sliding patio door in Fort Worth is usually about more than swapping one panel for another. Heat gain, sticky tracks, weak locks, fogged insulated glass, and water at the threshold all point to a system that is no longer doing its job. The right replacement should open smoothly, seal tightly, and make the patio easier to use through North Texas heat, wind, and sudden rain.
This guide explains what affects sliding patio door replacement cost in Fort Worth, which glass options matter, and how to choose tracks, panels, and frame materials without overbuilding the project.
When a Fort Worth Sliding Patio Door Should Be Replaced
Many homeowners first call when the door becomes hard to slide. Sometimes the problem is a roller adjustment, but a full replacement makes more sense when the frame is bent, the sill is leaking, the glass seal has failed, or the lock no longer catches securely. Older patio doors can also feel hot from several feet away because the glass and frame transfer afternoon sun directly into the room.
Fort Worth homes with west-facing patios, pool decks, and open yards tend to show these problems sooner. Wind-driven rain can expose weak drainage, while summer UV can age weatherstripping and rollers. If the patio door is also a major view from the living room or kitchen, replacement is an opportunity to improve both performance and the look of the room.
What Drives Sliding Patio Door Replacement Cost?
Cost depends on opening size, panel count, frame type, glass package, hardware, and how much preparation the existing opening needs. A basic two-panel replacement is usually the simplest project. Larger multi-panel doors, pocketing systems, or custom widths require more planning because the head track, sill, and side jambs must stay square across a wider span.
- Opening size: Wider doors need stronger tracks, larger glass units, and more careful installation.
- Panel configuration: Two-panel systems are simpler; three- and four-panel layouts create a broader view and can open from the center or side.
- Glass choice: Low-E insulated glass costs more than clear glass but helps reduce heat transfer.
- Frame material: Aluminum frames are slim, durable, and common for modern patio openings.
- Threshold condition: Rotten trim, uneven slab edges, or poor drainage can add labor.
Low-E and Insulated Glass for Fort Worth Heat
For most exterior patio doors in Fort Worth, insulated glass with a Low-E coating is worth considering. The goal is not to make a glass wall perform like a solid wall; the goal is to reduce the heat load enough that the room stays more comfortable and the HVAC system does not fight direct sun all afternoon.
Low-E glass is especially helpful when the door faces south or west, sits beside a pool, or opens into a room with high ceilings. If the patio is shaded most of the day, clear insulated glass may be enough. For rooms with glare problems, a subtle tint can help, but it should be chosen carefully so the patio view still feels natural.
Track and Drainage Details Matter
A smooth sliding door starts with a stable track. During replacement, the installer should check whether the slab or framing is level, whether the sill drains correctly, and whether the track is protected from standing water. Poolside doors and covered patios still need drainage because splash, cleaning water, and sideways rain can reach the threshold.
Ask about roller quality, track height, weep paths, and how the system will be sealed at the exterior. These details are easy to overlook in a showroom conversation, but they determine whether the door still slides well years after installation.
Sliding Door vs Bi-Fold Door for the Same Opening
A custom sliding door is the practical choice when you want a clean view, simple operation, and daily reliability. A bi-fold door creates a wider clear opening for entertaining, but it uses more panels and hardware. For many Fort Worth patios, sliding doors offer the best balance of cost, comfort, and maintenance.
If your goal is a full indoor-outdoor opening, compare both systems during measurement. If your priority is replacing a worn patio door with something efficient and easy to use, a custom sliding system is usually the cleaner answer.
Best Fit for Fort Worth Homes
Two-Panel Sliding Doors
Best for standard patio openings, breakfast rooms, and compact yards. They are cost-effective and simple to operate.

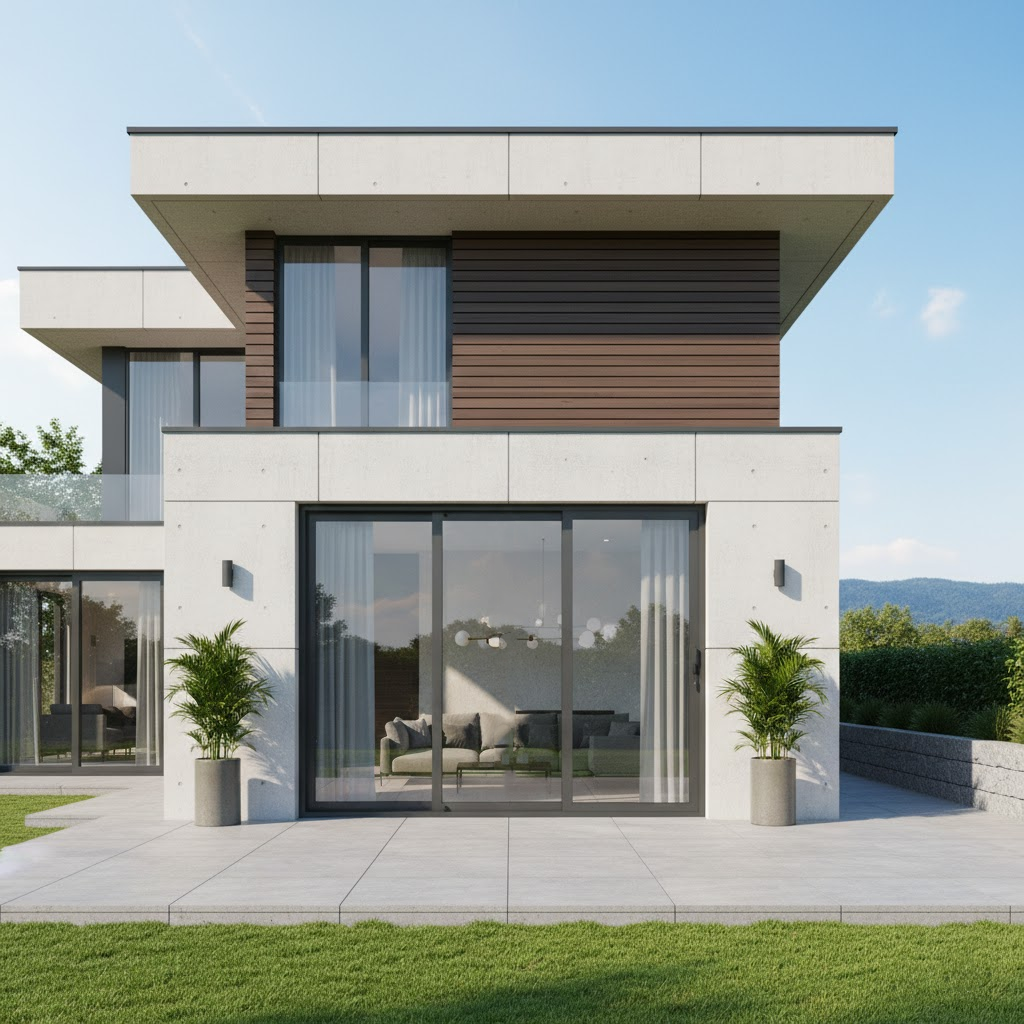

Three-Panel Sliding Doors
Useful when you want a larger glass view without a full folding wall. They work well for living rooms facing a pool or covered patio.
Four-Panel Sliding Doors
A strong option for wide openings, especially when paired with Low-E insulated glass and a durable aluminum frame.
Planning Your Replacement
Before ordering, measure the rough opening, note the direction of sun exposure, photograph any water damage, and decide how much opening width you actually use. Texas Glass Door can help match the design to the opening, including thermal break metal door options where energy performance is a priority.
For patio expansions, sunrooms, or glass enclosure projects, it may also be worth reviewing patio enclosure options at the same time so the door, fixed glass, and drainage details work together.
FAQ
How long does a sliding patio door replacement take?
Many standard replacements can be installed in a day once the custom door is ready. Larger openings or sill repairs can add time.
Is Low-E glass necessary in Fort Worth?
It is strongly recommended for sunny exposures, large glass areas, and rooms that already run warm in summer.
Can a sliding door replace a French door?
Often yes, but the opening, threshold, trim, and exterior drainage need to be checked before quoting.
Do you serve Fort Worth and nearby DFW cities?
Yes. Texas Glass Door works across Fort Worth, Dallas, Arlington, Mansfield, Southlake, Plano, Frisco, and surrounding North Texas communities.
Get a Sliding Patio Door Quote
Ready to replace a sticky, hot, or leaking patio door? Contact Texas Glass Door to schedule measurements and compare sliding patio door options for your Fort Worth home.
