Product Overview

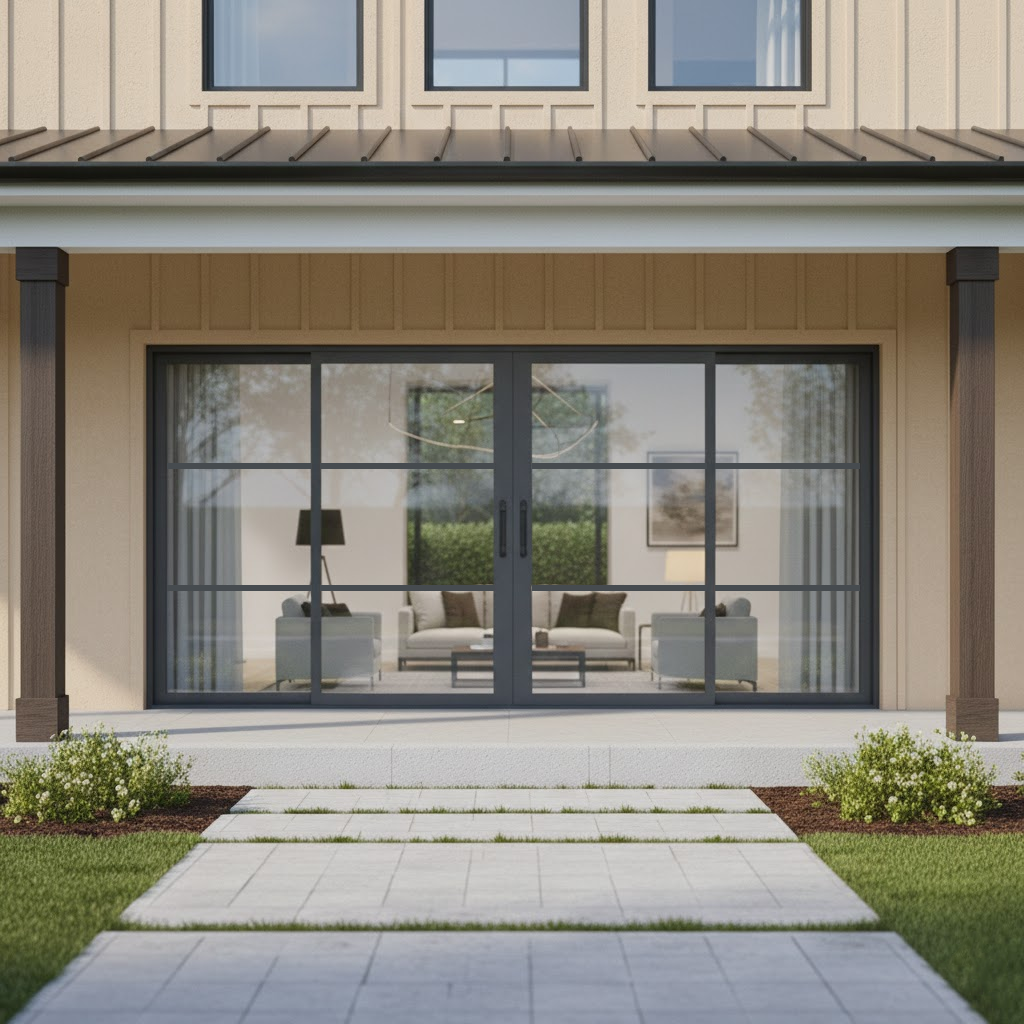

This aluminum exterior sliding door features a 4-panel, 3-lite design — combining grand scale with refined architectural detail. Four wide panels, each divided into 3 horizontal lite sections, create an expansive yet elegantly structured glass wall. Perfect for large living rooms, luxury patio spaces, and open-plan entertainment areas across Texas.
Product Details
| Door Type | Exterior Sliding Door |
| Configuration | 4 Panel, 3-Lite |
| Material | 6063-T5 Extruded Aluminum |
| Finish | Powder Coated (Custom colors available) |
| Glass | Tempered Glass (Multiple options available) |
| Hardware | SUS 304 Stainless Steel Wheels, Multi-point Lock |
| Seal System | EPDM Rubber Seal |
| Standard Sizes | 120"×80" | 120"×96" | 144"×80" | 144"×96" |
| Thermal Break | Available (Thermal Break & Non-Thermal Break options) |
Material & Construction
- 6063-T5 Extruded Aluminum Frame: High-strength aluminum alloy profile — lightweight, rust-resistant, and built to handle Texas heat and humidity.
- Powder-Coated Finish: Durable powder coating provides a clean, long-lasting surface that resists chipping, fading, and corrosion.
- SUS 304 Stainless Steel Wheels: Premium-grade roller system ensures smooth, effortless sliding operation for years of daily use.
- Multi-Point Locking System: High-quality handles with multi-point lock for superior security.
- EPDM Rubber Seal: Weather-tight seal blocks drafts, dust, and moisture infiltration.
Glass Options
- Single-Pane Tempered Glass – Clear, Tinted, Frosted, or Decorative
- Standard Double Glazing – Improved insulation for year-round comfort
- Low-E Double Glazing – Energy-saving, ideal for Texas summers
- Laminated Glass – Maximum strength and security
Panel Configuration
4 Panel – 3-Lite
- 4 sliding panels, each divided into 3 horizontal lite sections for an architectural, structured appearance.
- Available sliding directions: Slide to Left, Slide to Right, Two Side Panel Fixed, All Removable.
- 3-Lite adds visual rhythm and depth while still allowing generous light and view through each panel.
- Thermal Break option reduces heat transfer — highly recommended for exterior Texas installations.
Key Features
- Premium 6063-T5 extruded aluminum construction
- 4-panel, 3-lite design — grand scale with architectural elegance
- SUS 304 stainless steel wheels for ultra-smooth operation
- Thermal Break option available for energy efficiency
- EPDM rubber seal for superior weather resistance
- Custom sizes available beyond standard dimensions
Please contact our team before placing an order. Our team will confirm the correct product details with you before finalizing the order.
Email: sales@texasglassdoor.com
Call/Text: +1 (469) 653-6546
Or fill out our Customer Request Form
