Product Overview

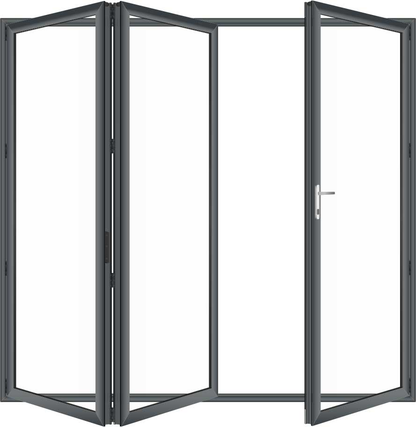

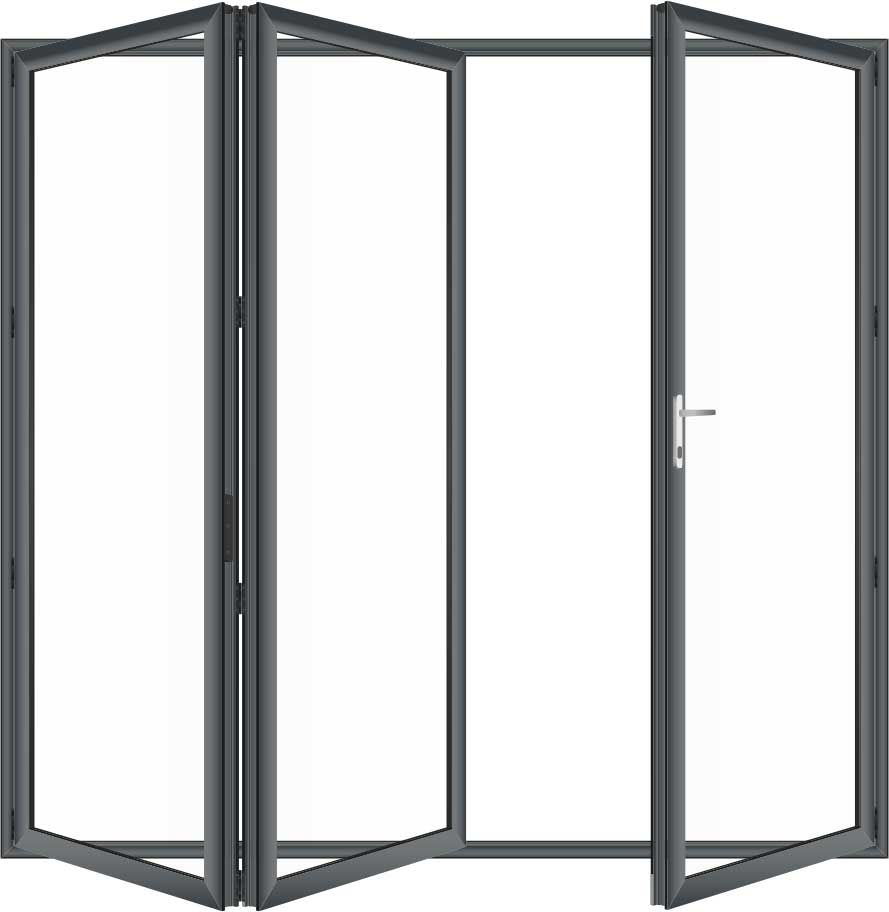

This thermal break aluminum bi-fold door features 3 panels of 6063-T5 extruded aluminum with polyamide thermal break strips — a wide-opening, energy-efficient door with a clean modern aluminum profile. Perfect for Texas patios and indoor/outdoor spaces. Available in multiple fold configurations and custom sizes.
Product Details
| Door Type | Thermal Break Aluminum Bi-fold Door |
| Panels | 3 Panel |
| Material | 6063-T5 Extruded Aluminum + Polyamide Thermal Break, Powder Coated |
| Thermal Break | PA66 GF25 Polyamide strip |
| Glass | 1" dual pane Argon-filled tempered glass |
| Fold Direction | All Left to Right | All Right to Left | Split options |
| Seal System | EPDM Rubber Seal |
| Custom Sizes | Available upon request |
Material and Construction
- 6063-T5 Extruded Aluminum: Lightweight, strong, and naturally corrosion-resistant.
- Polyamide Thermal Break (PA66 GF25): Significantly reduces heat transfer.
- Powder-Coated Finish: Durable, available in custom colors.
- Energy-Efficient Glass: 1" dual pane tempered glass with Argon gas.
- EPDM Rubber Seal: Weather-tight.
- Concealed Hinges: Clean minimal profile.
About Thermal Break Doors
- Polyamide layer inside the aluminum frame stops heat conducting through.
- Lighter than steel, never corrodes, available in custom colors.
- Ideal for Texas climate — reduces energy bills and condensation year-round.
Key Features
- 6063-T5 aluminum — lightweight, strong, and corrosion-resistant
- Polyamide thermal break for superior energy efficiency
- 3-panel bi-fold — wide opening with multiple fold configurations
- Energy-efficient 1" dual pane Argon-filled glass
- Custom sizes and colors available
