Product Overview

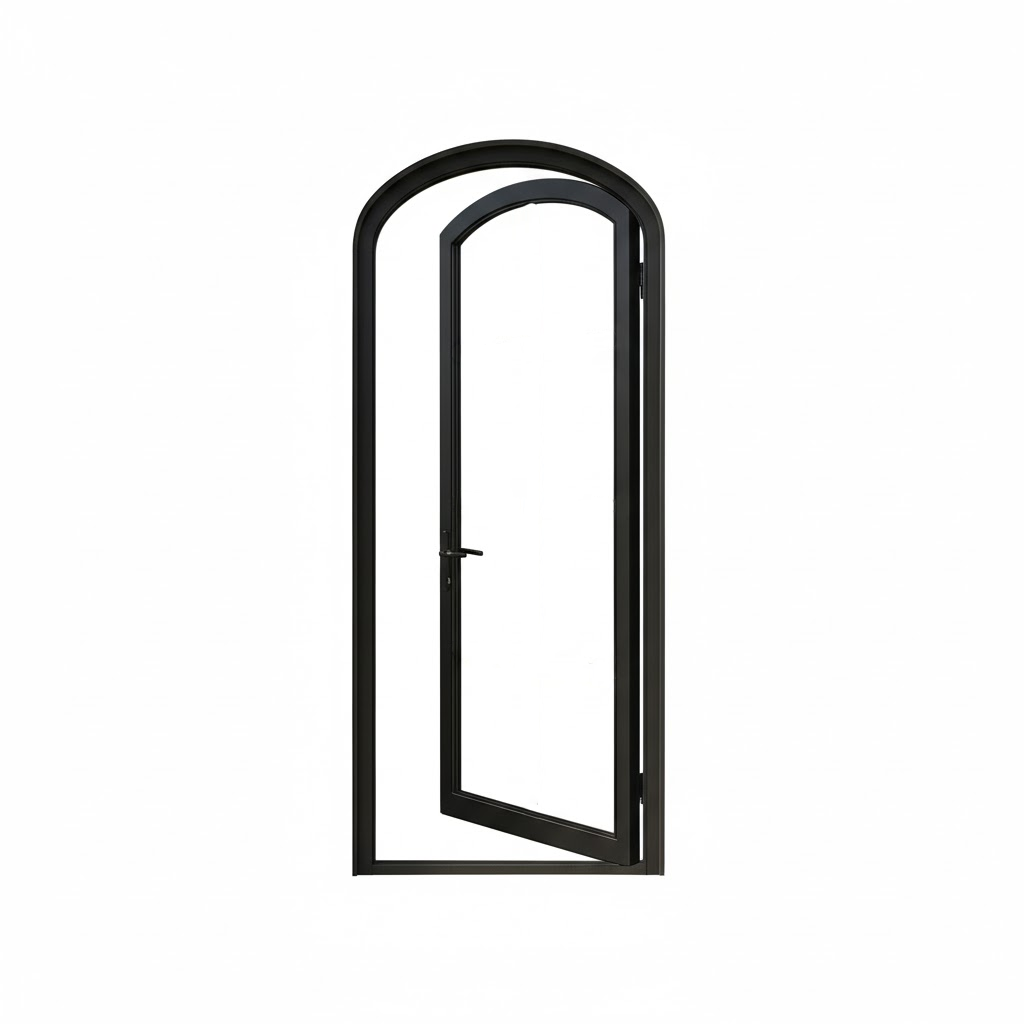

This thermal break aluminum single door features a bold arch top design built from 6063-T5 extruded aluminum with polyamide thermal break strips — dramatic architecture meets lightweight, corrosion-resistant energy efficiency. Available in 0-Lite, 3-Lite, 4-Lite, 6-Lite, and Custom Size.
Product Details
| Door Type | Thermal Break Aluminum Single Door |
| Top Style | Arch Top |
| Material | 6063-T5 Extruded Aluminum + Polyamide Thermal Break, Powder Coated |
| Thermal Break | PA66 GF25 Polyamide strip |
| Glass Options | 0-Lite | 3-Lite | 4-Lite | 6-Lite | Custom Size |
| Hardware | Pre-bored for standard locking systems |
| Seal System | EPDM Rubber Seal |
| Standard Sizes | 37" x 80" | 37" x 96" | Custom sizes available |
Material and Construction
- 6063-T5 Extruded Aluminum: Lightweight, strong, corrosion-resistant — never rusts.
- Polyamide Thermal Break: Bonded inside frame — significantly reduces heat transfer.
- Powder-Coated Finish: Durable, custom colors available.
- Energy-Efficient Glass: 1" dual pane tempered glass with Argon gas.
- EPDM Rubber Seal: Blocks drafts, moisture, and dust.
Glass Options
- Single-Pane Tempered Glass – Clear, Tinted, Frosted, or Decorative
- Standard Double Glazing – Improved insulation
- Low-E Double Glazing – Energy-saving
- Laminated Glass – Maximum strength and security
Key Features
- 6063-T5 aluminum — lightweight and corrosion-resistant
- Thermal break for superior energy efficiency
- Arch top — 0/3/4/6-Lite and Custom Size options
- Energy-efficient 1" dual pane Argon-filled glass
- Custom sizes and colors available
